Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Thiết bị dây dẫn căng thủy lực diesel SA-Dy-30KN | Max liên tục căng thẳng: | 30kn |
|---|---|---|---|
| Tốc độ ở Max Pull: | 2,5km/h | Tốc độ tối đa: | 5km/h |
| Lực kéo ngược tối đa: | 20kn | Ứng dụng: | Xây dựng đường dây điện |
| Làm nổi bật: | adjustable hydraulic puller tensioner,hydraulic cable tensioner for transmission lines,500KV transmission line stringing tool |
||

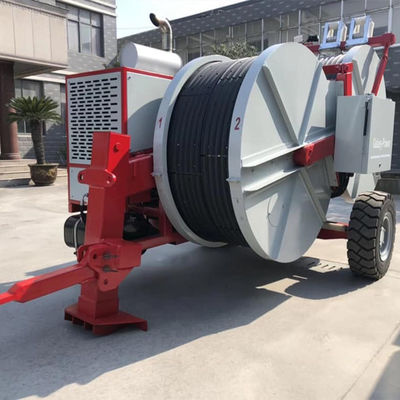

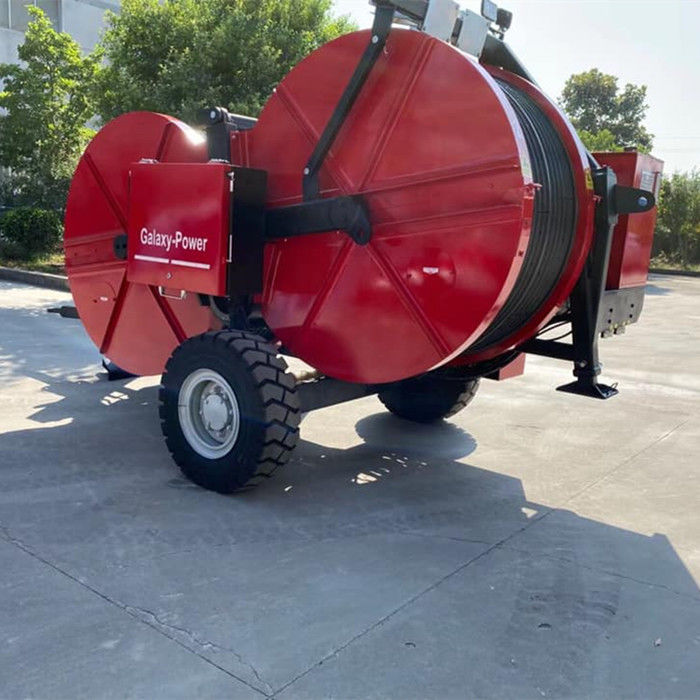

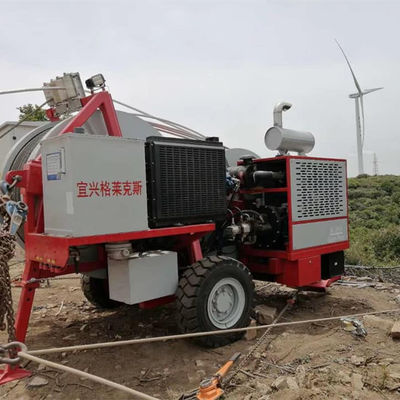

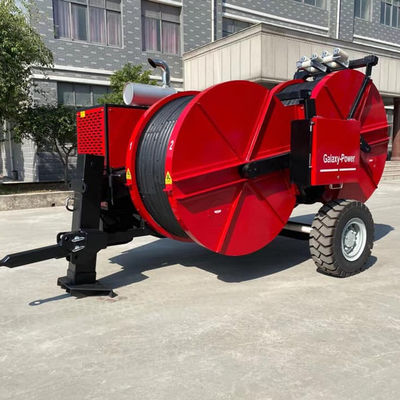

SA-ZY-30KN Adjustable Hydraulic Puller Tensioner for 500KV Transmission Line Stringing
30KN Hydraulic Tensioner Equipment Description:
The machine is hydraulically controlled for the tensile force and complete with quality parts and
components such as hydraulic break, high-performance finned radiator, hydraulic power unit,
precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power
unit provides the traction of conductors at both positive and negative directions. The single-beam trailer
chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve
a portable compact integrity easy to be loaded, transported and transferred.
30KN Hydraulic Tensioner Equipment Performance :
|
Max continuous tension 30kN
Speed at max pull 2.5km/h
Max speed 5km/h
Tension at max speed 15kN
Max reverse pulling force 20kN
|
|
Gassoline engine 12kw(16hp)
Electrical system 12V
|
|
Bull-wheel diameter : 1300mm
Max conductor diameter : 40mm
Max Optical fiber cable diameter : 21mm
Groove width : 60mm
Groove number : 5
Total weight : 2064kg
Overall dimension 3700×1950×2150mm
|
|
Engine Japan Honda (or Robin)
Hydraulic pump Tianjin Parker
Main motor Tianjin Permco
Speed reducer German Rexroth / Italy Brevini
Hydraulic meter German WIKA
|
